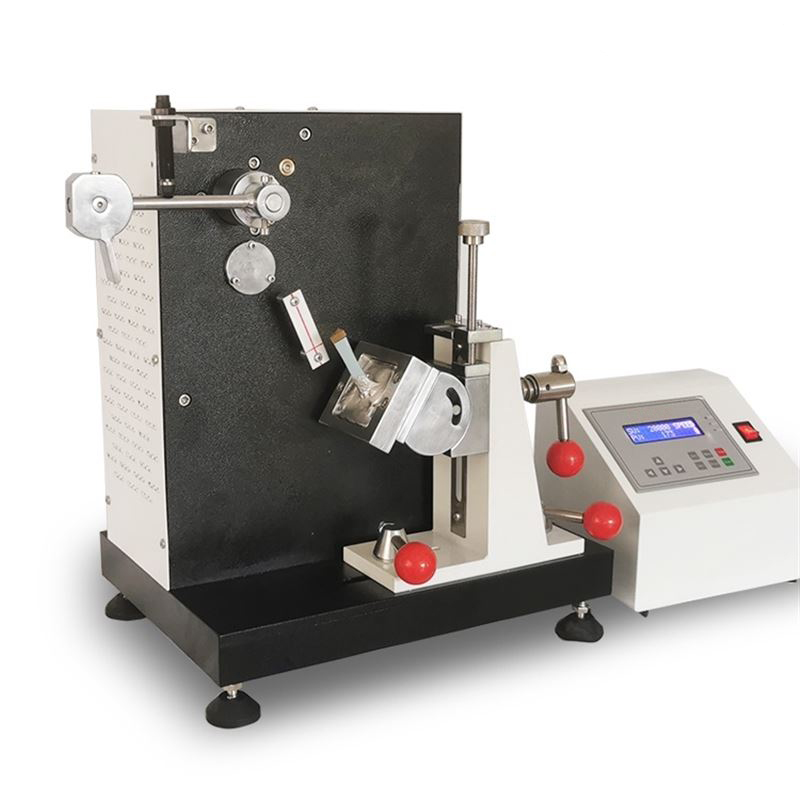

WT-6044 shoe heel fatigue testing machine
1. Introductions
The shoe heel fatigue resistance testing machine is for determine the ability of ladies’ shoes to withstand the repeated small impacts imposed by normal walking.
2. Relative test methods
QB/T 2864/ ISO 19956 footwear—test methods for heels—fatigue resistance
BS5131.4.9methods of test for-footwear and footwear materials-part 4. Other components- section 4.9 fatigue resistance of heels of ladies shoes
SATRA TM 21 fatigue test for shoe heel
3.specifications
| No. | Item | Spec. |
| 1 | Impact energy | 0.68±0.02J |
| 2 | Impact frequency | 60 times/ min |
| 3 | Diameter of circular steel bob on pendulum | 57mm |
| 4 | Thickness of circular steel bob on pendulum | 20mm |
| 5 | Adjusting of test clamp | Adjustable up, down, front, back |
| 6 | Adjust height of sample base | 25mm |
| 7 | Adjust angle | 0-90° |
| 8 | Voltage | AC220V |
| 9 | Weight | 75kg |
4. features
- Surface treatment of the body: DuPont powder from the United States, electrostatic spray painting process, cured at high temperature of 200 ℃ to ensure long-lasting color fastness.
- Mechanical components are composed of non-corrosive structures and stainless steel
- The test fixture adopts universal adjustment to adapt to different sizes of specimens and different testing angles
- LED-SLD806 Integrated display control box, menu style operation mode
- High precision bearings, smooth rotation, and long service life
- Repeated impact with built-in impact buffer
