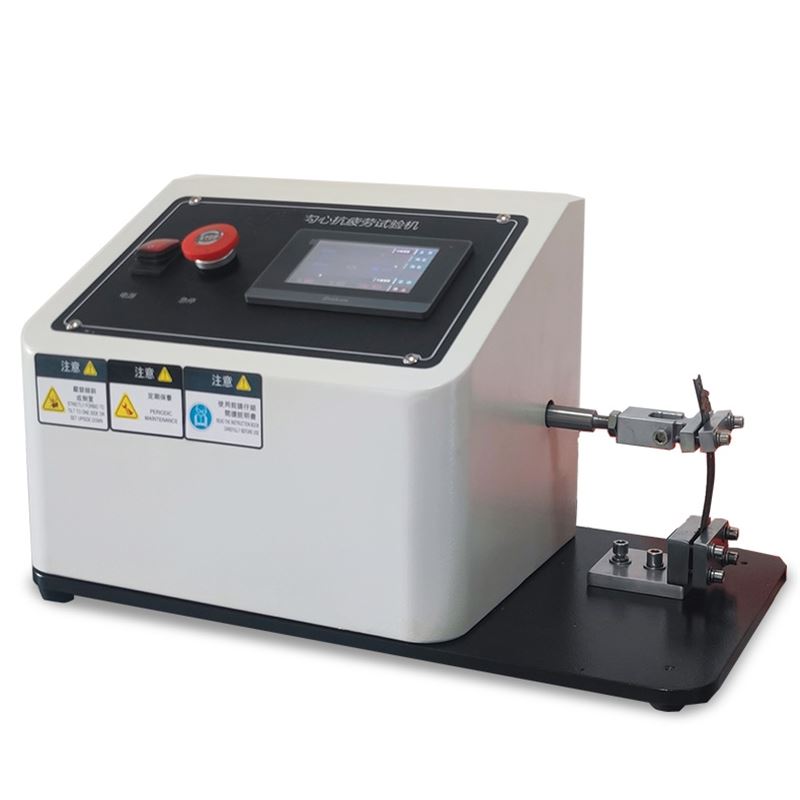

WT-6045A footwear shank fatigue testing machine
1. Introductions
The leather shoe shank fatigue testing machine is used to test the anti fatigue performance of the shank in the reinforced waistline area of footwear. During testing, fix the heel end of the shank on the fixture of the footwear shank fatigue testing machine, and apply a repeated cyclic force to the footwear shank through the force arm of the footwear shank fatigue testing machine, let the footwear shank to repeatedly bend until it fractures or reaches the set number of flex times.
2. Relative test methods
ISO 18895 / GB/T 3903.35 footwear—test methods for shanks—fatigue resistance
SATRA TM 97 fatigue test for steel shanks
3.specifications
| No. | Item | Spec. |
| 1 | Loading force | 49±2N(5±0.2kg) |
| 2 | Height of lower grip | 32mm |
| 3 | Frequency of upper grip | 0-250times/min |
| 4 | Distance between center of upper grip and upper surface of lower grip | 70±2mm |
| 5 | Control mode | Color touch screen |
| 6 | Test times setting | 0-99999 times |
| 7 | Test sample shape | “—” type and “Y” type shank |
| 8 | Force accuracy | 1% |
| 9 | Auto stop functions | Auto stop when reach set times; Auto stop when shank breaks |
| 10 | Dimension | 650x350x710mm |
| 11 | Weight | 120kg |
| 12 | Voltage | AC220V,50Hz |
4. features
- Surface treatment of the body: DuPont powder from the United States, electrostatic spray painting process, cured at high temperature of 200 ℃ to ensure long-lasting color fastness.
- Mechanical components are composed of non-corrosive structures and stainless steel
- Adopting high-frequency guide electromagnetic valve, non jamming, durable, and equipped with noise reduction
- Color LCD touch screen control and display, simple operation, convenient maintenance, stable and reliable
- One click fully automatic testing, easy and convenient to operate
