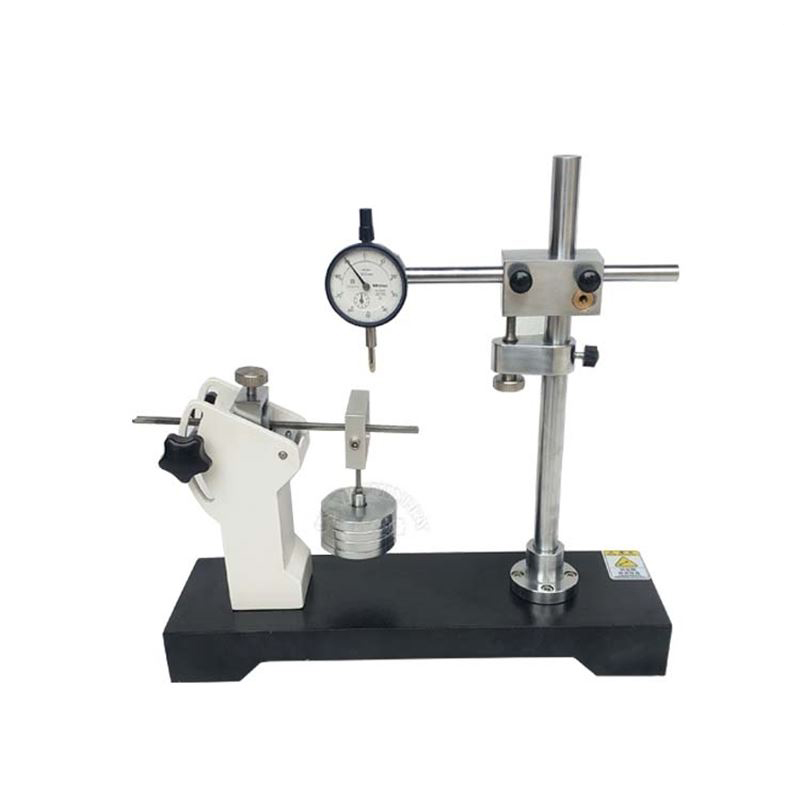

WT-6045 footwear shank longitudinal stiffness testing machine
1. Introductions
The footwear steel shank longitudinal stiffness is to measure and determine the longitudinal stiffness of steel shanks used in shoes.
2. Relative test methods
BS5131-4.18 methods of test for footwear and footwear materials—part 4:other components—section 4.18 longitudinal stiffness of steel shanks
QB/T1813 test methods of leather shoes steel shank longitudinal stiffness
3.specifications
| No. | Item | Spec. |
| 1 | Adjusting angle of heel end clamp | 30° |
| 2 | Measuring card length | 60±0.02mm |
| 3 | Front clamp thickness | 12mm |
| 4 | Accuracy | 0.01mm |
| 5 | Dial gauge range | 0-10mm |
| 6 | Dimension | 450x200x450mm |
| 7 | Weight | 20kg |
4. features
- Surface treatment of the body: DuPont powder from the United States, electrostatic spray painting process, cured at high temperature of 200 ℃ to ensure long-lasting color fastness.
- Mechanical components are composed of non-corrosive structures and stainless steel
- Thickness can be adjusted
- Direct reading precision thickness gauge
- Standard weight, semi open and directly held, easy to operate
