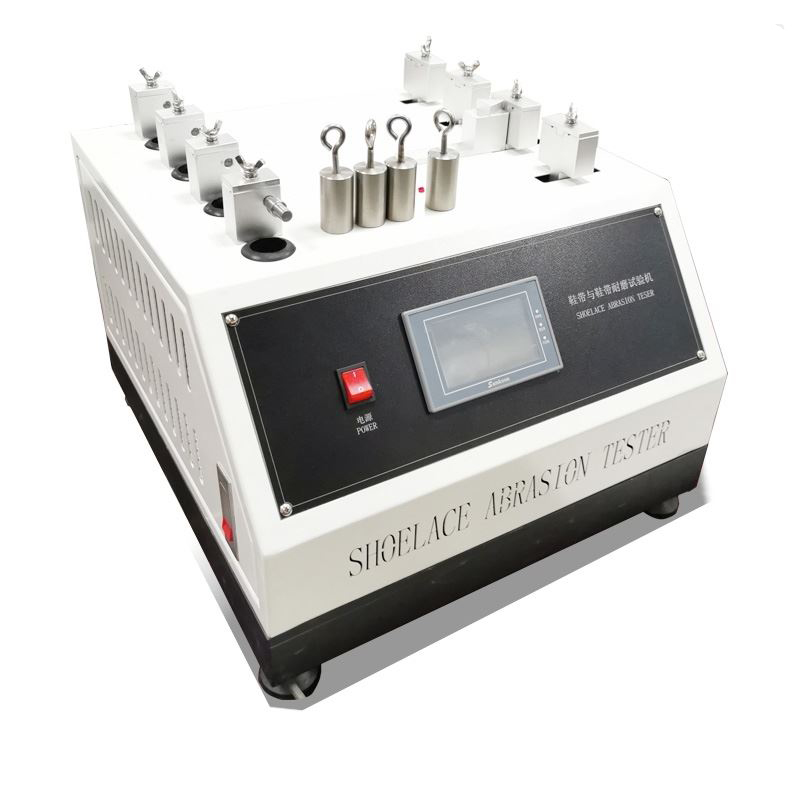

WT-6047 shoe lace and eyelets abrasion tester
1. Introductions
The shoe lace and eyelet abrasion tester can measure and determine the abrasion resistance between shoe laces and eyelets.
2. Relative test methods
BS5131-3.6 methods of test for footwear and footwear materials—part 3: uppers, textiles and threads—section 3.6 abrasion resistance of shoe laces
ISO 22774 footwear—test methods for accessories:shoe laces—abrasion resistance
SATRA TM93 abrasion between shoe laces and eyelets
3.specifications
| No. | Item | Spec. |
| 1 | Test sample quantity | 6 groups |
| 2 | Reciprocating stroke | 76±2mm |
| 3 | Test speed | 100±5 times/min. |
| 4 | Test clamps | 6 groups |
| 5 | Weights | 455±5g,6 pcs |
| 6 | Test time setting | 0-999999 times |
| 7 | Standard eyelet | Made of brass φ 4.5mm, overall length 5.5mm |
| 8 | Voltage | Single phase AC220V |
| 9 | Stop function | Auto stop while reach set times |
| 10 | Dimension | 550x560x400mm |
| 11 | Weight of machine | 75kg(not include the weights) |
4. features
- Surface treatment of the body: DuPont powder from the United States, electrostatic spray painting process, cured at high temperature of 200 ℃ to ensure long-lasting color fastness.
- Mechanical components are composed of non-corrosive structures and stainless steel
- Standard eyelets, suitable for shoelaces of all types of shoes
- Precision drive motor, smooth operation, low noise
- One click fully automatic testing, easy and convenient to operate
- 6 independent counting stations with independent stop function
- Color LCD touch screen control and display, simple operation, convenient maintenance, stable and reliable
