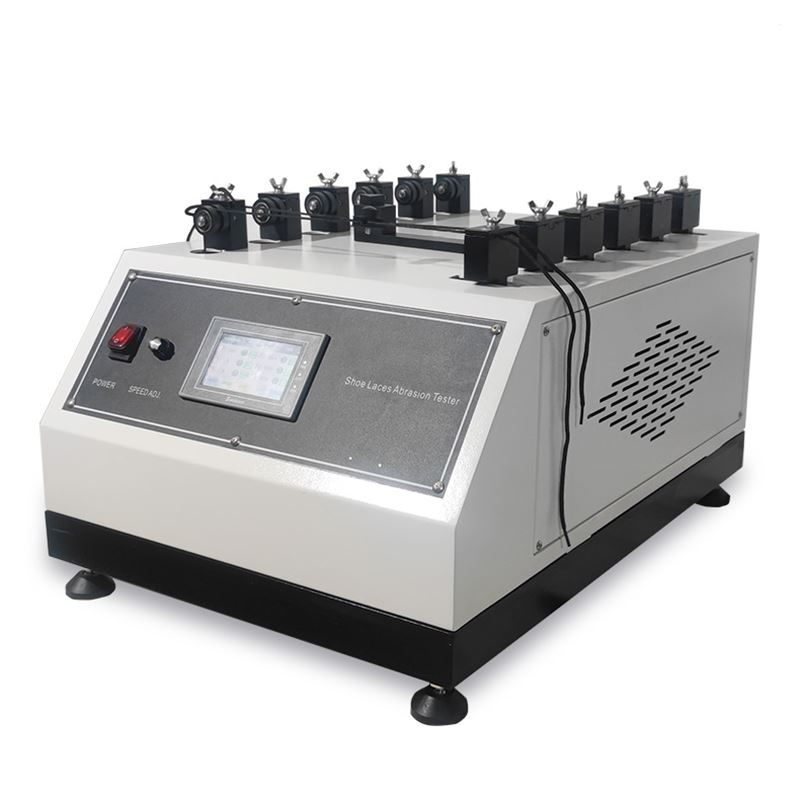

WT-6048 shoe lace abrasion tester
1. Introductions
The shoe lace abrasion tester can measure and determine the abrasion resistance between shoe lace and shoe lace or eyelets.
2. Relative test methods
DIN 4843 safety footwear safety requirements testing
QB/T 2226 testing methods of shoe lace abrasion
GB/T 3903.36 / ISO 22774 footwear—test methods for accessories: shoe laces—abrasion resistance
SATRA TM 154 shoe lace to shoe lace and shoe lace to lace carrier abrasion
GB 25037 industrial rubber boots
ISO 2023 rubber footwear—lined industrial vulcanized-rubber boots—specification
3.specifications
| No. | Item | Spec. |
| 1 | Max. distance between clamps | 310mm |
| 2 | Stroke of moving clamp | 35mm |
| 3 | Test speed | 60±6 r/min. |
| 4 | Test grips | 6 groups |
| 5 | Template angle | 52.2° |
| 6 | Template distance | 120mm |
| 7 | Eyelet grip | 200x20mm |
| 8 | Weights | 250±3g, 4 pcs |
| 9 | Number counting | 0-9999999 |
| 10 | Motor | DC180W |
| 11 | Machine dimension | 500x680x340mm |
| 12 | Weight | 66kg |
| 13 | Voltage | Single phase 10A 220V |
4. features
- Surface treatment of the body: DuPont powder from the United States, electrostatic spray painting process, cured at high temperature of 200 ℃ to ensure long-lasting color fastness.
- Mechanical components are composed of non-corrosive structures and stainless steel
- Precision drive motor, smooth operation, low noise
- One click fully automatic testing, easy and convenient to operate
- 6 independent counting stations with independent stop function
- Color LCD touch screen control and display, simple operation, convenient maintenance, stable and reliable
